GM Boost Solenoid Install

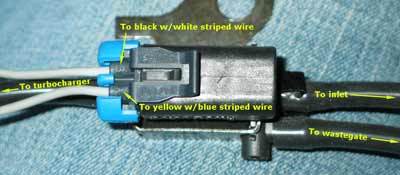

THE PICTURE EXPLAINS IT ALL!
PORTS:
- Single Port Side -> To BOOST side of Turbocharger
- Center Port (on opposite side) -> To TURBO INLET
- Final Port above CENTER PORT -> To WASTEGATE
WIRING:
- Wire “A” (stamped on clip) -> Connect to YELLOW with BLUE STRIP wire
- Wire “B” (stamped on clip) -> Connect to BLACK with WHITE STRIP wire
